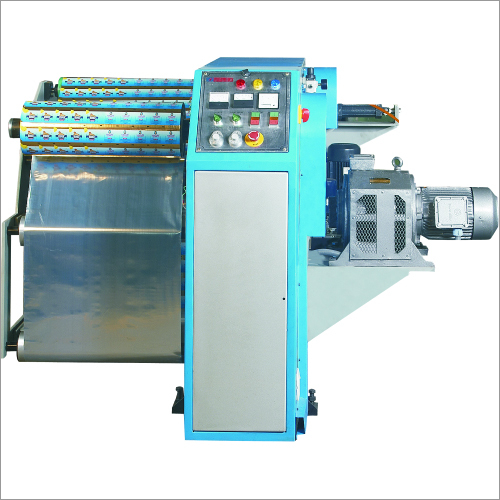

DRM-600 Doctoring Machines

Name: DRM-600 Doctoring Machines
Brand: UFLEX LIMITED (ENGINEERING DIVISION)
Price: 2600000 INR
Availability: InStock

Price 2600000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

DRM-600 Doctoring Machines Specification

Shape
Rectangular Base with Cylindrical Rollers

Phase
Single Phase

Torque
Manual Adjustable

Diameter
Roller: 76 mm core ID, 800 mm max. roll OD

Product Type
Doctoring Machine

General Use
Web Material Inspection and Rewinding

Material
Mild Steel Body, Chrome Plated Rollers

Type
Roll to Roll Doctoring

Capacity
600 mm web width (standard)

Weight (kg)
Approx. 350 kg

Computerized
No

Automatic
Semi-Automatic

Touch Screen
No

Control System
Electronic Controller

Surface Treatment
Powder Coated

QC System
Inbuilt Inspection Lamp

Tolerance
0.5 mm

Drawing
Available on request

Voltage
220-240V AC, 50 Hz

Dimension (L*W*H)
1620 x 920 x 1050 mm (approx.)

Feature
High Speed, Compact Size, Easy Web Inspection, Stable Web Path, Jam-free Operation

Color
Blue and Silver

DRM-600 Doctoring Machines Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
12-16 Week

Main Export Market(s)
Western Europe, Australia, North America, Eastern Europe, Middle East, Central America, South America, Asia, Africa

Main Domestic Market
All India

About DRM-600 Doctoring Machines

This equipment has been specially designed to salvage/rectify printed/ unprinted, substrate after slitting. The Doctoring Machine is of cantilever construction so that the loading of the parent reel and unloading of the rewound reel is both, convenient and easy. Both the rewind and unwind shafts are mechanically expandable and therefore, the core locking and unlocking can be effected easily.

A pair of precision-machined steel plates, braced together with tie rods and channel section base, forms the support structure of the machine.

The unwind shaft along with the necessary braking drum is located on sliding plate which can oscillate freely on linear motion ball bearings. The desired braking torque on the unwind reel can be manually applied by powder brake. Requisite numbers of web support rollers are provided for the smooth web flow before the rewind shaft. The web path itself has been so designed that the sensor of the `Pneumo Hydraulic Edge Guide can be conveniently adjusted as per requirement.

An eddy current variable speed drive is provided for smooth operation of the machine(with soft start) in the range of 0 - 120 M/min.

Optimal Performance for Versatile Applications

The DRM-600 Doctoring Machine delivers reliable performance for inspecting and rewinding a wide range of web materials. Thanks to its 600 mm standard width, compatibility with multiple substrates like PET, BOPP, and laminates, and sturdy construction, it meets the rigorous demands of flexible packaging industries. The high-speed capability and jam-free design keep your operations smooth and efficient.

User-Friendly Operation and Flexible Control

Ease of use is a hallmark of the DRM-600. It comes with a semi-automatic system, manual edge guiding, and a user-friendly electronic controller. Roll loading is made straightforward with the option of a pneumatic or mechanical shaft. The compact structure allows for convenient installation, while an inbuilt inspection lamp ensures comprehensive web inspection.

Advanced Features for Quality and Safety

Engineered with stable web path management, the DRM-600 integrates an inspection lamp and supports optional features like inkjet printing, static elimination, and auto tension control for superior output quality. Safety and durability are ensured through its powder-coated mild steel body, noise level below 75 dB, and tight operational tolerances.

FAQs of DRM-600 Doctoring Machines:

Q: How does the DRM-600 Doctoring Machine facilitate web material inspection and rewinding?

A: The DRM-600 Doctoring Machine employs an inbuilt inspection lamp and a stable web path to enable thorough inspection of web materials during the rewinding process. Its manual edge guide and electronic controller ensure precise web alignment and efficient roll rewinding, minimizing material defects and operational downtime.

Q: What materials are compatible with the DRM-600 Doctoring Machine?

A: The machine is designed for a broad range of web materials, including flexible packaging films, laminated products, BOPP, PET, polyester, LDPE, and label stock. Its adjustable torque and core size compatibility support versatility in roll types and material gauges.

Q: When should optional features like auto tension control or inkjet batch printing be considered?

A: Optional features such as auto tension control are recommended when processing delicate or high-value materials to ensure consistent tension and prevent damage. Inkjet batch printing becomes valuable for traceability or production marking needs directly on the rewound web, streamlining in-line identification.

Q: Where is the DRM-600 typically used, and who can benefit from it?

A: This machine is widely used in packaging, converting, and printing facilitiesespecially those handling flexible packaging or label stock. Manufacturers, exporters, and suppliers in these sectors benefit from its reliability and versatility for quality inspection and controlled rewinding of rolls.

Q: What is the process for loading and operating the machine?

A: Roll loading can be performed using either a pneumatic or mechanical shaft, providing flexibility for various operational setups. Operators use the manual edge guide to align the material, adjust torque settings, and monitor the rewinding process through the electronic controller and inspection lamp.

Q: How does using the DRM-600 Doctoring Machine improve overall production quality?

A: By providing precise web handling, real-time inspection, and jam-free operation, the DRM-600 helps identify defects early, reduce waste, and ensure that only high-quality material advances in the production line. The optional static eliminator further enhances output by minimizing static-related issues.
