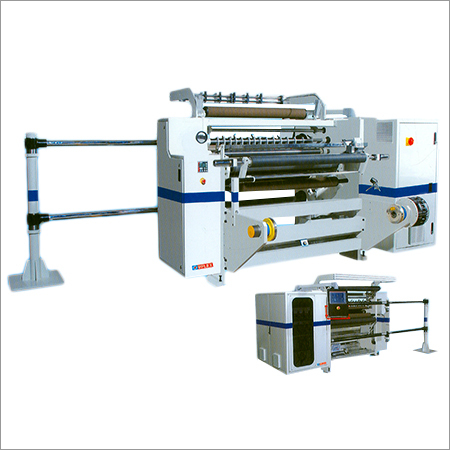

Send InquiryEcoslit Slitting Rewinding Machine
Price 5500000 INR/ Piece
Ecoslit Slitting Rewinding Machine Specification
- Drive Motor
- High-performance AC servo drive
- Product Type
- Slitting Rewinding Machine
- General Use
- Converting large rolls into smaller, manageable rolls with precise slitting
- Material
- Suitable for film, paper, foil, laminates, polyester, BOPP, PVC, LDPE, HDPE, aluminum foil, etc.
- Capacity
- Max unwind diameter 1000 mm, max rewind diameter 600 mm
- Weight (kg)
- 1800 - 2200 Kg (varies by model)
- Computerized
- Yes
- Automatic
- Fully automatic
- Cutting Speed
- up to 300 meters/min
- Cutting Thickness
- 0.012 mm - 0.3 mm (material dependent)
- Cutting Function
- Slitting and rewinding
- Cooling System
- Air cooled
- Drive Type
- Servo motor drive
- Voltage
- 220-440V, 50/60Hz, 3-phase (optional variations available)
- Dimension (L*W*H)
- Approx. 4200 mm x 2450 mm x 1800 mm
- Feature
- High speed, heavy-duty frame, web guide system, tension control, easy material loading
- Color
- Industrial grey with yellow highlights (as per image shown)
- Motor
- 5 HP AC motor (standard, upgrades available)
- Mechanical Precision
- ±0.1 mm
- Software Detail
- Integrated HMI touchscreen interface
- Cutting Method
- Rotary blade slitting
- Control System
- Advanced touch-based PLC
- Cutting Area
- Up to 1300 mm (varies by model)
- Cutting Material
- Various flexible packaging materials
- Application Industries
- Flexible packaging, converting, label stock, adhesive tape, lamination industries
- Construction
- Robust, powder-coated MS frame
- Roll Changeover Time
- Less than 5 minutes
- Web Alignment System
- Automatic edge guider system
- Slitting Accuracy
- 0.2 mm
- Safety Features
- Interlock protection, emergency stop switch, safety guards on moving parts
- Power Consumption
- Approx. 6-7 KW
- Bearings
- Heavy-duty, low-noise bearings
- Unwind Core Size
- 76 mm standard
- Operator Requirement
- Single operator
- Rewind Core Size
- 76 mm (3 inches) standard, other sizes optional
- Noise Level
- Below 72 dB
Ecoslit Slitting Rewinding Machine Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Letter of Credit (L/C), Telegraphic Transfer (T/T), Cash in Advance (CID)
- Supply Ability
- 1 Piece Per Month
- Delivery Time
- 12-16 Week
- Main Domestic Market
- All India
More Products in Slitting Rewinding Machines Category

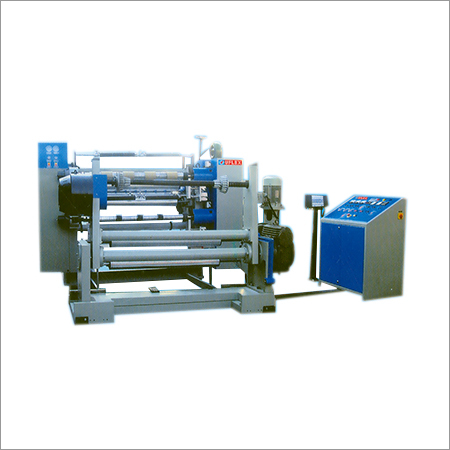

UFLEX Slitting Machine
Price 5500000 INR / Piece
Minimum Order Quantity : 1 Piece
Dimension (L*W*H) : 3500 mm x 2200 mm x 2000 mm
Drive Type : Other, Electric Motor Driven
Material : Other, Mild Steel, Stainless Steel
Mechanical Precision : ±0.1 mm
Crdsl Slitting Machine
Price 4600000 INR / Piece
Minimum Order Quantity : 1 Piece
Dimension (L*W*H) : 3400 x 1200 x 1400 mm
Drive Type : Electric
Material : Other, Mild Steel, Stainless Steel
Mechanical Precision : ±0.1 mm

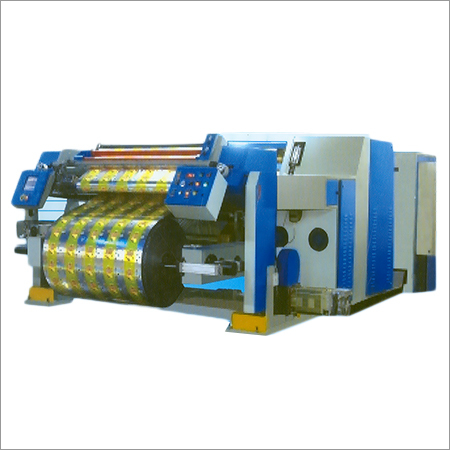

Slitter Rewinder
Price 4000000 INR / Piece
Minimum Order Quantity : 1 Piece
Dimension (L*W*H) : 3200 mm x 1500 mm x 1300 mm
Drive Type : Other, Electric Motor
Material : Other, Mild Steel Body with Hard Chrome Rollers
Mechanical Precision : ±0.2 mm

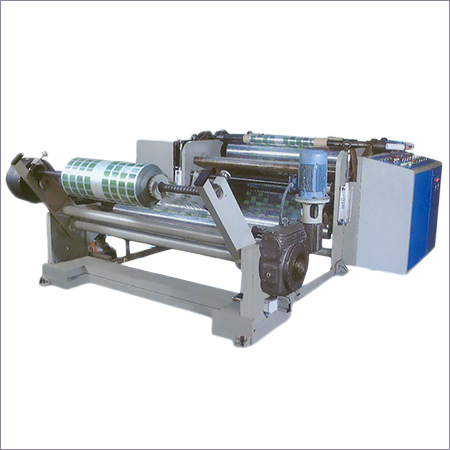

Slitting Machine
