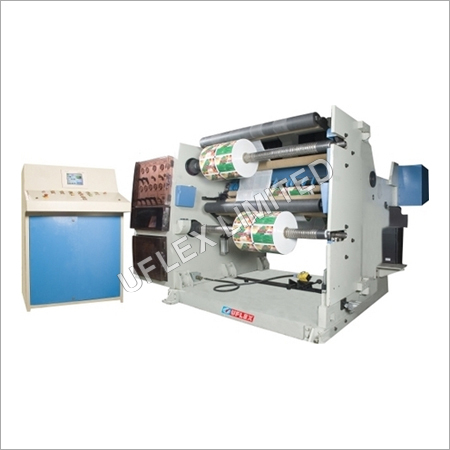

Surface Slitting Machine

Name: Surface Slitting Machine
Brand: UFLEX LIMITED (ENGINEERING DIVISION)
Price: 6000000 INR
Availability: InStock

Price 6000000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Surface Slitting Machine Specification

Drive Motor
AC Motor with VFD

Product Type
Surface Slitting Machine

General Use
Slitting and Rewinding Flexible Packaging Materials

Material
Mild Steel Structure

Capacity
Up to 1000 mm Roll Diameter

Weight (kg)
Approx. 1800 kg

Computerized
Yes

Automatic
Yes

Cutting Speed
10–250 m/min

Cutting Thickness
Up to 300 GSM (for films, foils, papers, laminates)

Cutting Function
Automatic Slitting and Rewinding

Cooling System
Air Cooling

Drive Type
Electric

Voltage
380 V / 415 V, 3 Phase, 50 Hz

Dimension (L*W*H)
3200 mm x 1800 mm x 1600 mm

Feature
High Precision, Adjustable Speed, Easy Operation

Color
Industrial Grey and Blue

Motor
3 HP Main Drive Motor

Mechanical Precision
±0.2 mm

Software Detail
PLC Based Control Panel

Cutting Method
Rotary Blade Slitting

Control System
PLC Panel with Touchscreen

Cutting Area
1300 mm (W) x Unlimited (L)

Cutting Material
Paper, Foil, Film, Laminates

Rewind Shaft Diameter
76 mm

Working Temperature
5C - 40C

Max. Unwind Diameter
1000 mm

Safety Features
Emergency Stop, Safety Covers

Tension Control
Automatic Load Cell Based

Slitting Width Range
50 mm - 1300 mm

Power Consumption
Approx. 7 kW

Max. Rewind Diameter
650 mm

Noise Level
< 75 dB

Installation Requirement
Level Flooring, Power Supply Connection

Unwind Shaft Diameter
76 mm

Surface Slitting Machine Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash in Advance (CID)

Supply Ability
50 Pieces Per Month

Delivery Time
12-16 Week

Main Domestic Market
All India

About Surface Slitting Machine

The offered Surface Slitting Machine is used for the shearing of sheets and films from a larger roll to make rolls of various different sizes as per their width and diameter. It is designed and developed by using top quality materials which ensures higher strength and rigidity to withstand large uneven forces. The mechanical rollers installed within the system are rotated with the help of a high performance electrical motor which can be easily controlled with the help of controller.

High Precision Slitting Performance

Engineered for accuracy, the Surface Slitting Machine ensures slitting widths from 50 mm to 1300 mm with mechanical precision of 0.2 mm. The rotary blade method delivers clean, consistent cuts, essential for maintaining product quality in packaging, converting, and manufacturing operations. Its high-speed capacity enhances productivity for demanding environments.

Intuitive Operation and Control

The machine is equipped with a PLC-based control system and a user-friendly touchscreen interface, simplifying setup and operation. Automatic load cell-based tension control reduces manual intervention, ensures optimal performance, and minimizes material waste. Adjustable speed settings let operators adapt to various material types and production requirements with ease.

Safety, Efficiency, and Durability

Built for continuous industrial use, the slitter features robust safety measures including emergency stops and safety covers. Its noise output remains below 75 dB, supporting comfortable work environments. The durable mild steel structure, air cooling, and reliable AC drive system ensure long service life and consistent efficiency.

FAQs of Surface Slitting Machine:

Q: How does the Surface Slitting Machine maintain high cutting precision?

A: The Surface Slitting Machine utilizes a rotary blade method combined with robust PLC-based controls, achieving a mechanical precision of 0.2 mm. Automatic tension control through load cells further ensures every slit remains accurate, even during high-speed operations.

Q: What materials can this machine effectively slit and rewind?

A: Designed for versatility, the machine can handle paper, foils, films, and laminated materials up to 300 GSM. It is well-suited for packaging, converting, and flexible material manufacturing applications.

Q: Where can the Surface Slitting Machine be installed?

A: For optimal stability, the machine should be installed on level flooring in facilities with access to 380 V or 415 V, 3-phase, 50 Hz power supply. Its dimensions (3200 mm x 1800 mm x 1600 mm) require adequate installation space.

Q: What is the typical slitting and rewinding process using this machine?

A: Operators load the parent roll onto the 76 mm unwind shaft, configure settings via the PLC touchscreen, and initiate the process. The machine automatically maintains tension, cuts material to set widths (501300 mm), and rewinds finished rolls onto the 76 mm rewind shaft.

Q: When is tension control especially important?

A: Automatic tension control is crucial when handling thin films or lightweight laminates, as it prevents wrinkles, stretching, or tears. This feature ensures smooth rewinding and high-quality finished rolls, regardless of speed variations.

Q: What safety features are incorporated in the design?

A: The machine is equipped with emergency stop buttons and protective safety covers around moving parts, helping to prevent accidental injuries and supporting compliance with industrial safety standards.

Q: What are the key benefits of using this machine for flexible packaging suppliers?

A: The main advantages include high-precision slitting, reduced material waste, automated operation for consistent production, easy adjustment for different roll dimensions, and integrated safety measures, making it an efficient and reliable solution for exporters, manufacturers, and suppliers in India.
