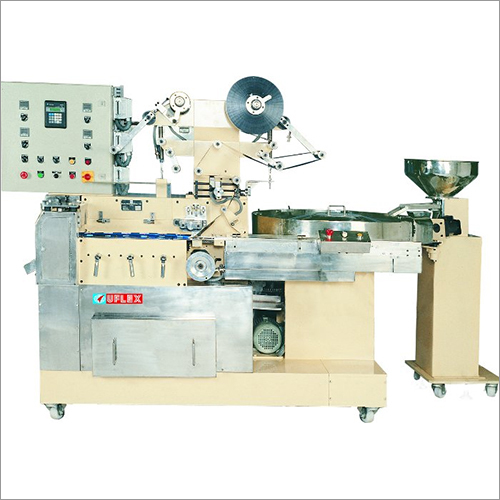

High Speed Candy Wrapping Machine

About High Speed Candy Wrapping Machine

Our well-established organization is highly engaged in manufacturing and exporting an exclusive array of High Speed Candy Wrapping Machine. Suitable for producing high quality leak proof pillow pack pouches for packing of hard-boiled candies, offered machines have continuous film pulling system. All parts are made up of food grade stainless steel SS-304 and SS-316, this High Speed Candy Wrapping Machine gives an output of up to 600 candies per minute.

Features

• Operator friendly interface
• Low power consumption
• Minimum wastage of packing material

Further Details

(MODEL: UFLEX-CWH-1004)

The Candy Wrapping Machine produces leak proof pillow pack pouches for hard-boiled candies. The machine has a continuous film pulling system.The machine is controlled by PLC and provided with an operator friendly interface. The machine has a built in very high sensitivity, high response photo registration to ensure accurate positioning of the product and cutting of the film even at high speeds which results in minimum wastage of packing material. The machine is also provided with an AC Drive as the prime mover.The machine takes in the packaging material in the form of printed roll of heat seal able laminated film.

The High Speed Candy Wrapping Machine has a dozing system of either rotary disc feeding system or bowl feeder, whichever is suitable as per the product to be packed. All product contact parts are made up of food grade stainless steel SS-304/SS-316.This machine is a high-speed machine, which can give an output up to 600 candies per minute. The machine can also be provided with 2, 3, 4, 5, 6 or 8 candies in a single pouch.

Features:

• Horizontal High speed candy wrapping machine produces leak proof pillow pack pouches for hard boiled candies.
• The machine takes in the packing material in  the form of printed roll of heat seal able laminated film.
• The machine has continuous film pulling system.
• Controlled by PLC and provided with an operator friendly MMI (man machine interface.)
• All the temperature controllers provided in the machine are PID.
• The machine has  a built in high sensitivity, high response photo registration to ensure accurate positioning of the product and cutting of the film even at high speed which results in less wastage of packing material.
• Being a high speed machine it can give an output up to 600 candies per minute.
• Can also be provided with 2,3,4,5,6 or 8 candies in a single pouch.


Technical Details:

1. Product to be packed	- Hard Boil Candy / Chewing Gum / Camphor
2. Qty. to be packed	- Single ( for Chewing Gum as per requirement )
3. Machine	- High Speed Candy Wrap Machine ( MODEL : FLEX - CWH-1003 )
4.Control	- PLC (Programmable Logic Control)
5. Temperature Controller	- PID type
6. Maximum Roll Width	- 90 mm
7. Maximum Repeat Length	- 120 mm
8. Maximum Roll Diameter	- 300 mm
9. Filling system	- Disc Feeding System/ Bowl Feeder
10. Speed	- 600-650 Pouches / Min.
11. Pouch Type	- Center Seal Pillow Type
12. Power Consumption	- 5.5 KW
13. Power supply	- 220 V/A.C/ Single Phase
14. Feature	- Individual Temperature Control - High Speed Counter - Voltage Vector Control
15. Dimensions	L=2200 mm., W= 1400 mm., H = 1900 mm.
16. Net Weight	770 Kg. ( Approx.)

Robust Construction and Advanced Automation

Crafted from stainless steel, the High Speed Candy Wrapping Machine delivers exceptional durability and longevity. Integrated computerization and a PLC control system enable precise, automated wrapping operations, ensuring every candy is perfectly sealed, whether using twist or pillow seal. This combination of sturdy materials and intelligent automation means stable performance and reduced maintenance requirements.


Superior Packaging Efficiency and Versatility

Boasting a high-speed electric drive and easy-to-use controls, this machine is ideal for wrapping both hard and soft candies efficiently. The adjustable filling range and ability to switch between sealing types make it adaptable to diverse packaging needs. Its 2.5 kW power supply and compact design allow efficient operation while occupying minimal space, maximizing productivity for manufacturers.
