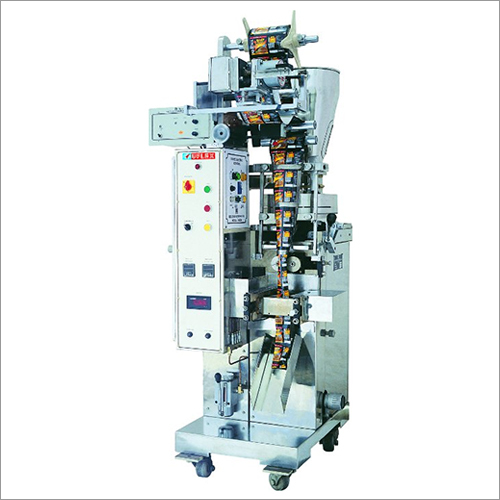

Automatic Form Fill Seal Machines

Name: Automatic Form Fill Seal Machines
Brand: UFLEX LIMITED (ENGINEERING DIVISION)
Price: 3000000 INR
Availability: InStock

Price 3000000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Automatic Form Fill Seal Machines Specification

Sealing Length
100-300 mm (Adjustable)

Sealing Speed
Up to 40 Seals per Minute

Filling Capacity
Up to 1 kg (Depending on Product)

Color
Stainless Steel / Grey

Packaging Speed
Up to 2400 Packs per Hour

Sealing Type
Heat Sealing

Accuracy
±1% (Depending on Product & Filling System)

Weight
Approx. 400-500 kg

Voltage
220 V / 50 Hz

Type
Automatic Form Fill Seal Machine

Condition
New

Automation Grade
Automatic

Application
Powder, Granules, Liquids, Paste Packaging

Driven Type
Electric Motor Driven

Dimension (L*W*H)
2350 mm x 850 mm x 1100 mm

Seals Type
Center Seal, Three Side Seal, Four Side Seal

Production Capacity
Up to 2400 Packs per Hour

Packaging Material
Laminated Film, Polyethylene, Polypropylene

Power
2.5 kW

Feeding Type
Auger Filler / Volumetric Cup Filler / Piston Filler (model dependent)

Compressed Air Required
6 CFM @ 6 Bar (if applicable)

Changeover Time
Approximately 20-30 minutes for size change

Material
Stainless Steel Construction

Film Roll Width
Up to 400 mm

Film Thickness
50-120 Microns

Safety Features
Overload & Short Circuit Protection

Display
Digital Counter/Touch Screen (as per model)

Hopper Capacity
25-40 Liters (depending on model)

Control Panel
Microprocessor / PLC Based

Cutting System
Pneumatic / Mechanical

Automatic Form Fill Seal Machines Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Letter of Credit (L/C), Telegraphic Transfer (T/T), Cash in Advance (CID)

Supply Ability
1 Piece Per Month

Delivery Time
12-16 Week

Main Domestic Market
All India

About Automatic Form Fill Seal Machines

FORM FILL & SEAL MACHINES

Multitrack Form Fill and Seal machine is PLC Controlled which is compatible for packing various powder, granules, liquid and paste in four side seal pouches. The machine is equipped with servo drive and motors, web control system and unwinding unit. Maximum web width of 1000 / 1200 mm and maximum 10 / 12 tracks can be made on machine.

Optional Attachments :

Batch Cutter
Die cut punch
Collating system
Embossing / coding unit
Notching unit.

Versatile Packaging Applications

This automatic machine accommodates a wide range of packaging needs, from powders and granules to liquids and pastes. With adjustable filling and sealing parameters, it is suitable for industries such as food, pharmaceuticals, chemicals, and more. The packing capacity of up to 1 kg and several sealing options make it adaptable for different product types and packaging requirements.

Advanced Control and Safety

Equipped with a microprocessor or PLC-based control panel, the machine delivers precision and user-friendly operation. The safety features, including overload and short circuit protection, ensure safe and reliable performance. Changeover time for different pack sizes is minimal, facilitating efficient transitions and high productivity with full automation support.

FAQs of Automatic Form Fill Seal Machines:

Q: How do I operate the Automatic Form Fill Seal Machine for different products?

A: Operation is straightforwarduse the digital counter or touch screen to select the product type (powder, granules, liquid, or paste) and adjust the filling and sealing parameters according to your specific requirements. The machine supports auger, volumetric cup, or piston filler systems depending on the product.

Q: What is the recommended material and film thickness for packaging?

A: For optimal performance, use laminated film, polyethylene, or polypropylene with a film thickness between 50 and 120 microns. The machine can accommodate film roll widths of up to 400 mm, offering flexibility for various packing sizes.

Q: When should I perform size changeovers on the machine?

A: Size changeovers are necessary when shifting to a different packaging size or product. The process is efficient and typically takes approximately 20 to 30 minutes, allowing minimal downtime and quick adaptation to new products or pack sizes.

Q: Where is the machine commonly used, and what applications does it serve?

A: This machine is widely utilized in food processing, pharmaceuticals, chemicals, and other manufacturing sectors in India and globally. It is suitable for packing powders, granules, liquids, and pastes into heat-sealed pouches of various configurations.

Q: What is the process for maintaining accuracy and speed during operation?

A: The machine provides an accuracy of 1% depending on the product and filling system. Regular calibration of the control panel and timely maintenance of feeders and sealers help maintain high packaging speed (up to 40 seals per minute) and consistent output quality.

Q: How does the machine ensure safety during operation?

A: Safety features include overload and short circuit protection, ensuring safe operation for users and equipment. The automatic control systems monitor performance and automatically halt the machine in case of anomalies.

Q: What are the main benefits of using this Automatic Form Fill Seal Machine?

A: Key benefits include high automation, consistent sealing quality, quick changeover times, versatile application for multiple packaging types, energy-efficient operation (2.5 kW), and robust construction for long-term reliability in demanding industrial environments.
