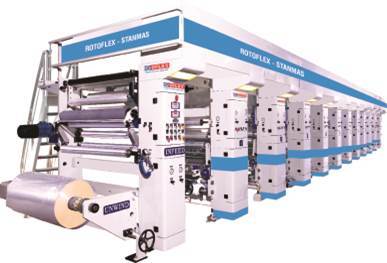

Rotogravure Super Printing Machine

ROTOFLEX SUPER is modular construction machine. Each printing station is a complete entity in itself. Therefore a station or two can always be added even at a later stage provided that the main drive power rating is taken care of right in the beginning. A printing cylinder can be loaded/ unloaded on each print station through a unique shaft-less, pneumatic chucking arrangement. This technique not only saves the changeover time but also ensures the exact centre-to-centre locking. All the four tension zones are equipped with frictionless dance feedback devices, which ensure very precise actual web tension control.

It has a Seven AC motor integrated digital drive with PC/panel view controls, Automatic Web Video & Register Control System to offer speed up to 300 meters/min. The digital drive precision tension control, together with the automatic length register control equipment and the web viewing system ensure superior end result. These features are the ultimate as far as the gravure press automation is concerned.
