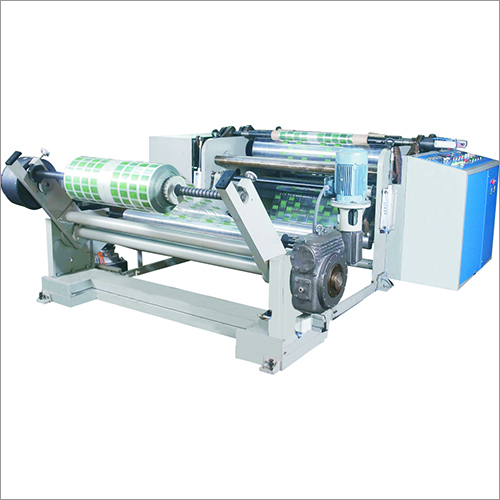

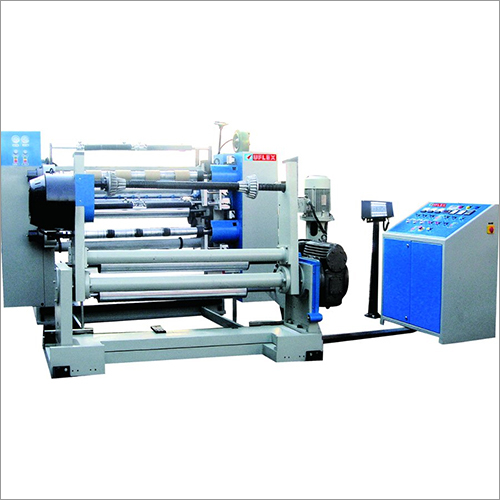

Slitting Machine

Name: Slitting Machine
Brand: UFLEX LIMITED (ENGINEERING DIVISION)
Price: 5500000 INR
Availability: InStock

Price 5500000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Slitting Machine Specification

Drive Motor
AC Induction Motor

Product Type
Slitting Machine

General Use
Sheet Metal Slitting

Material
Mild Steel

Capacity
10 Tons/day

Weight (kg)
1200 kg

Computerized
Yes

Automatic
Yes

Cutting Speed
60 m/min

Cutting Thickness
0.2 - 3 mm

Cutting Function
Automatic and Manual

Cooling System
Air Cooling

Drive Type
Electric

Voltage
220-440 V

Dimension (L*W*H)
3500 x 1500 x 1350 mm

Feature
High Precision, Low Noise, Energy Efficient

Color
Blue & White

Motor
5 HP

Mechanical Precision
±0.05 mm

Software Detail
PLC Controlled

Cutting Method
Rotary Blade

Control System
PLC Automation

Cutting Material
Steel, Aluminum

Cutting Area
1650 mm

Noise Level
< 75 dB

Rewind Speed
Adjustable

Machine Frame
Heavy Duty Welded Steel

Max Coil Diameter
1200 mm

Power Consumption
7.5 kW

Lubrication System
Centralized Automatic

Operator Interface
Touch Screen

Unwind Reel Type
Hydraulic Expandable

Working Temperature Range
5C to 45C

Safety Features
Emergency Stop, Overload Protection

Number Of Blades
10

Minimum Slit Width
30 mm

Slitting Machine Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Letter of Credit (L/C), Telegraphic Transfer (T/T), Cash in Advance (CID)

Supply Ability
1 Piece Per Month

Delivery Time
12-16 Week

Main Domestic Market
All India

About Slitting Machine

Speed of 450 Mtr. Per min
Differential Shaft on both Re winders up and down
Unwind with Air expandable.
Asynchronous motor with AC vector grade digital drives for pull unit and rewinders.
Compact web path and easy web threading.
Ultrasonic sensor for accurate diameter sensing at both unwinder and rewinder
Provision of touch panel for easy and user friendly operation with excellent diagnostic facility / alarm handling.
Laser light for core positioning at rewinder (Optional)
Precise Line guide system.
Auto tension control system
Trim removal arrangement etc and many more features

The machine has been designed to deliver optimum performance and productivity

With the spirit of innovation, Uflex as always , has been forging ahead to bring in novel solutions.

Advanced Precision and Efficiency

Achieve high-quality, accurate slitting results with this PLC-automated machine. Its rotary blade system and 0.05 mm mechanical precision guarantee consistency across every batch. With an adjustable cutting speed of up to 60 m/min and a centralized lubrication system, its built for both precision and continuous operation.

Designed for Safe and Comfortable Operation

The machine boasts essential safety features such as emergency stop and overload protection, making it safe for busy industrial environments. User-friendly controls via a touch screen and a noise level below 75 dB ensure both ease of use and operator comfort even during long shifts.

Robust Construction and Versatility

Built with a heavy-duty welded steel frame, this slitting machine can handle steel and aluminum coils up to 10 tons daily. The hydraulic expandable unwind reel, efficient air cooling, and compatibility with a voltage range of 220440 V make it adaptable and dependable for varied operational needs.

FAQs of Slitting Machine:

Q: How does the slitting process work on this machine?

A: The slitting process involves feeding sheet metal coils through 10 rotary blades, which precisely cut the material into narrower strips as per your specifications. The fully automated system, managed via PLC controls, allows operators to set and adjust parameters for each job, ensuring accurate and consistent results.

Q: What materials and thicknesses can the machine handle?

A: This slitting machine is capable of processing both steel and aluminum with cutting thicknesses between 0.2 mm and 3 mm. Its heavy-duty design and rotary blade cutting method make it suitable for a range of industrial sheet metal applications.

Q: When should I use the automatic vs. manual cutting modes?

A: Automatic cutting mode is ideal for standard, repetitive slitting tasks where high consistency and productivity are desired. The manual mode is recommended for setup, trial runs, or specialized jobs where operator interventions are necessary for quality control.

Q: Where can this slitting machine be installed?

A: Thanks to its moderate dimensions (3500 x 1500 x 1350 mm) and a robust yet efficient air cooling system, the machine can be installed in most industrial workshops or manufacturing plants in India that maintain a working temperature between 5C and 45C and adequate electrical supply.

Q: What benefits does the touch screen operator interface provide?

A: The touch screen operator interface simplifies machine setup, parameter adjustment, and real-time monitoring. This advanced feature enhances usability by reducing manual input errors, streamlining workflow, and allowing rapid access to the machines control functions.

Q: How does the machine ensure safe and reliable operation?

A: The machine incorporates an emergency stop button and overload protection to safeguard operators and equipment. Its centralized automatic lubrication system further reduces maintenance needs while ensuring continuous, safe operation.

Q: What is the daily processing capacity and typical usage of this machine?

A: Designed for high-volume operations, the slitting machine can process up to 10 tons per day. Its primary application is in the sheet metal industry, supplying accurately slit steel or aluminum strips for further manufacturing or export.
