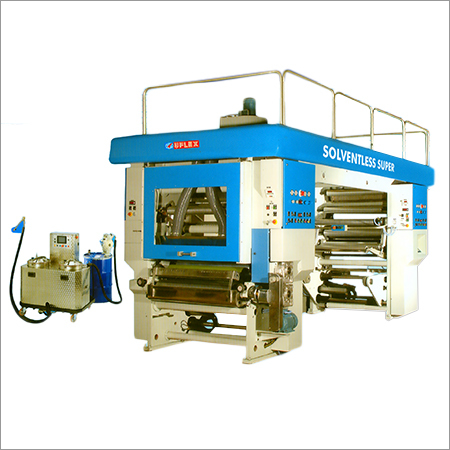

Coating Lamination Machine

About Coating Lamination Machine

With over two decades of dynamic existence, experience and expertise, we have emerged as a worldwide company, engaged in manufacturing and exporting of advance quality Coating Lamination Machine. Equipped with modern facilities, these machines are manufactured by our skilled manpower using supreme quality materials.  Suitable for producing flexible laminates of various configurations, this Coating Lamination Machine ensures accurate laminating nip pressure and temperature control.

Features:

• Convenient loading and unloading of reels
• Uniform and precise pick up at coating station
• Fully automatic constant horsepower

Further Details:

Coating Lamination Machine model standard is used for the purpose of producing flexible laminates of various configuration and it comes with a number of impressive feature such as: Convenient loading, unloading of reels.

• Turret unwind with auto tension control and auto splice.
• Precise tension control before entry to coating station through in feed.
• Uniform and precise pick up at coating station.
• High velocity hot air dryer with automatic temperature control and complete removal of solvent vapor.
• Accurate laminating nip pressure and temperature control with web entry at entry at desired tension.
• Fully automatic constant horsepower characteristic turret rewind with auto splice.

Technical Specification:

Machine Specifications
Maximum Web Width	1020mm
Minimum Web Width	600mm
Maximum Design Speed	200 meter/min
Primary Unwinder
Maximum Roll Diameter	800mm
Inside Core Diameter	76/152mm
Direction of Unwinding and Splicing	2 Direction unwinding and 1 Direction splicing
Typical Substrate Range
Polyester	10-12 micron
Polypropylene (OPP/BOPP)	15-25 micron
Metallized Polyester	12-25 micron
LDPE, HDPE, LLDPE	46-60 micron
Secondry Unwinder
Maximum Roll Diameter	800 mm
Inside Core Diameter	76/152 mm
Direction of unwind and splicing	2 Direction unwinding and 1 Direction splicing
Typical Substrate Range
LDPE	25-100 micron
Polyester	10-20 micron
Paper	40-80 gsm
Corona Treater
Optional	One 4Kw at secondary unwind side, for treatment of LDPE, LLDPE, PET, Metallised Films, Paper
Rewinder
Maximum Roll Diameter	800 mm
Inside Core Diameter	76/152 mm
Direction of Rewinding and Splicing	1 Direction
Tension Range
Primary Unwinder	4-20 kg
Secondary Unwinder	4-20 kg
Rewinder	4-25 kg
DC Motor with Digital DC Drives
Main Motor Coating Unit	1 no. Dc motor
Laminating Motor	1 no. Dc motor
Rewinding Motor	2 nos. Dc motor
Unwind Motor	4 nos. Dc motor
Infeed and Outfeed	2 nos. Dc motor
Hood	1 no. Dc motor
Drying System Hot air heating through thermic fluid
Dryers
Number of Dryers	6
Each Dryer Length	1.5 meter
Temperature Range	Ambient to 90C
Air Volume For 2 Dryers	3000 mt hour
Air Nozzle Velocity	30 meter/second
Individual Exhaust Fan Capacity	15% more than input Blower
Electric Supply Voltage	415 V+10%, 50Hz  2% 3ph
Control Voltage	24 V DC
Max Noise Level at Ground	90 DBA at 1 Meter level around machine
Air
Air Pressure at Machine	minimum 6 kg/cm
Water Content	below 0.01%
Maximum Air Consumption	50 mt hour
Water
Pressure at Machine	2 kg/cm
Water Consumption	10 liter min
Water Temperature	20-25 C
Total Heating Load	2,20,000 kcal hour
Hand of Line
To be determined Customers choice

Advanced Coating Capabilities

This machine accommodates water-based, solvent-based, and hot melt applications, enabling versatile lamination customized for different industrial requirements. With high-precision chrome-plated rollers and efficient edge control, it ensures uniform coating and bonding. The integration of a hot air/infrared heating system expedites processing, while computerization via a PLC control panel brings seamless, operator-friendly functionality and precise setting.


Robust Design and Reliable Performance

Constructed from powder-coated mild steel and equipped with chilled water circulation, the machine is designed for long-term durability and consistent cooling during high-speed operation. Adjustable for film widths up to 1500 mm and input paper sizes from 600 mm to 1500 mm, it easily adapts to varied production needs. An automatic tension control system guarantees even roll wind and unwind for optimal lamination quality every time.


Ideal for Multiple Industrial Applications

Designed for the printing, packaging, and label industries, our coating lamination machine supports production lines by offering fast, energy-efficient, and eco-friendly operation. Its noise level stays below 80 dB, while the machines precision and speed enhance output qualitymaking it a preferred solution for exporters, manufacturers, and suppliers across India.
